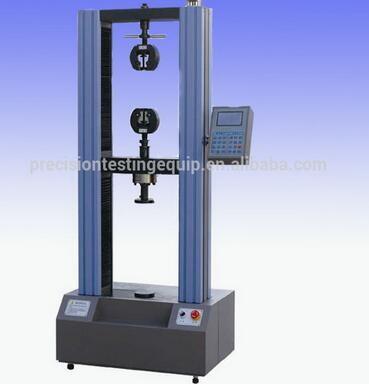

Chinese Professional Desktop Computer Material Test Machine

jinan hardness STING EQUIPMENT CO., LTD

Chinese Professional Desktop Computer Material Test Machine

Brand Name : PTE

Model Number : Chinese Professional Desktop Computer Material Test Machine

Certification : CE/ROHS/UL

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Universal Testing Machine

test : compression tension bending shearing

standards : ASTM, DIN, BS, JIS, GB, etc.

Maximum load : 100KG U.S. World Civil precision sensors

Tensile testing machin : computer servo

Display : LCD liquid crystal display

Contact Now

Professional Desktop Computer Material Test Machine for brick is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rollable base station, makes it all very convenient. In particular, suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 1000N non-metallic and metallic materials within the test.

Corresponding standard

"GB/T16491-1996 electronic universal testing machine"

Applicable industry

Computer Servo Material Test Instrument widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.

Technical parameters

Model Professional Desktop Computer Material Test Machine
Max load 50N,100N,200N,500N, 1KN, 2KN (optional)
Accurate grade 1 grade /0.5 grade
Effective measuring range Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy Tolerance ±1% / tolerance ±0.5%
Tester resolution Max load 1/200000, and constant resolution
Load sensor Basic configurationsensormax load:from four sensors to choose one
Effective tensile stroke 800mm (can be widened according to customers requirement )
Effective testing width 300mm
Testing speed From 0.001 to 500mm/min
Accruacy of displacement measurement Tolerance: ±0.5% / tolerance: ±0.2%
Safety Electronic-limit protection
Testing platform moving device Fast /slow ( two speeds to control), can jog
Return Back Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
Fixture A set of tensile fixture
Machine size 650*360*2100mm (L*W*H)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range From normal temperature to 200 degree
Temperature display Digital display
Inside space 200*300*500mm (W*L*H )
Cooling system Compression from France
Power supply 220V50HZ or according to the requirement
Power 0.4KW ( depending on different demand of force, using different motor)
Weight 150 Kg

Main functions

Computer Servo Material Test Instrument is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer) and other tests to determine product quality.

Main features

1. Good design.My company has been great emphasis on product appearance and development of many models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4.LCD liquid crystal display with backlight, can be used in low-light environment.
5. Single determination, you can read the tension and compression peaks in both directions, and automatic and manual reset;
6,With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.


Chinese Professional Desktop Computer Material Test Machine
Chinese Professional Desktop Computer Material Test Machine
Chinese Professional Desktop Computer Material Test Machine
